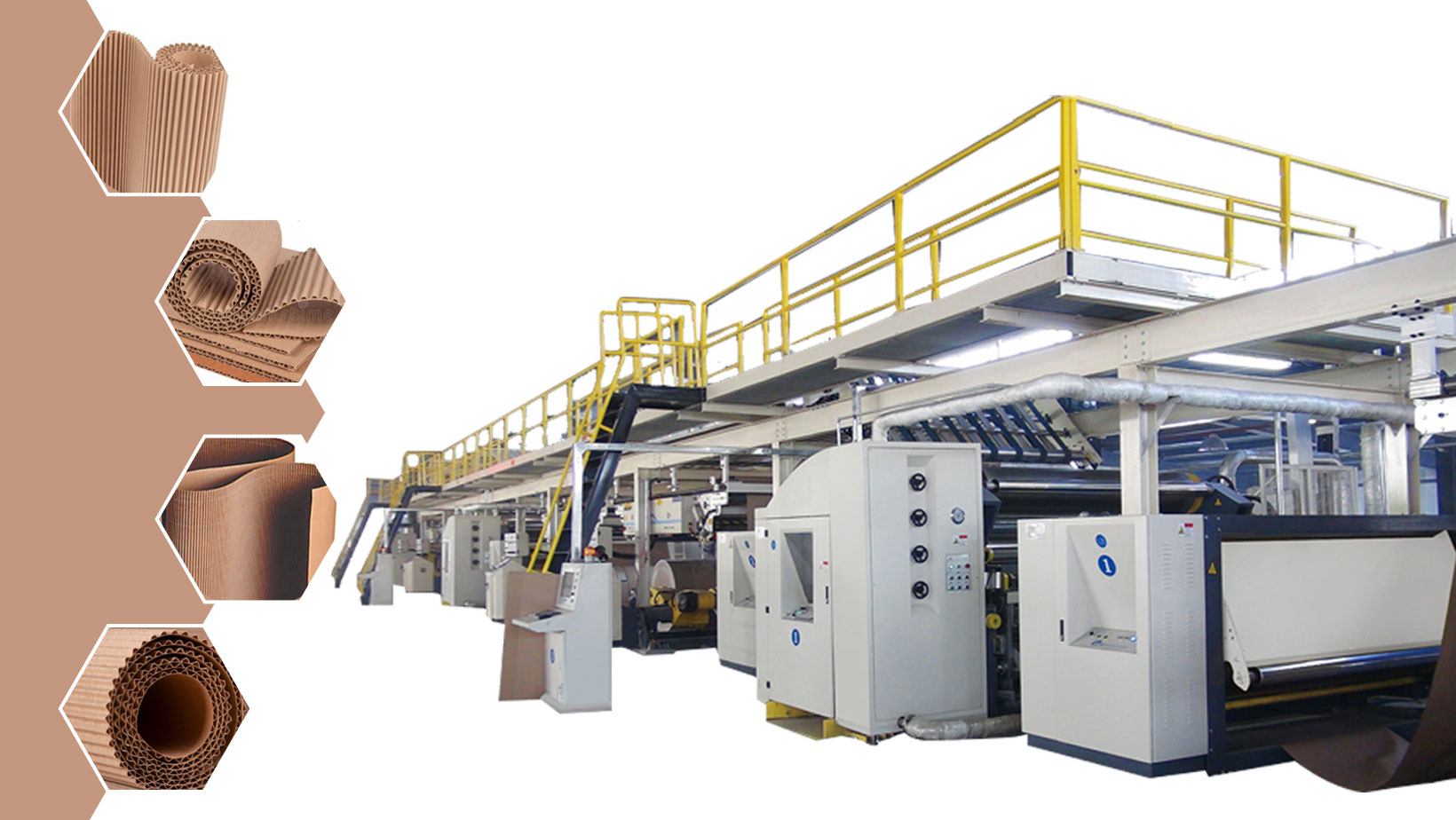

Corrugated Paper Machine
YANTAI DEMENG MACHINERY is a comprehensive high-tech enterprise focusing on corrugated board production line, printing machinery linkage line,
automatic gluing machine research and development, production and sales integration. We mainly produce 3, 5, 7 layers of different specifications of corrugated cardboard production line equipment.
The equipment is mainly composed of hydraulic shafeless paper rack, paper trolley and ground rail, preheating cylinder, single-sided machine, conveying bridge, preheater, gluing machine, double-sided machine, longitudinal indentation machine, cross-cutting machine, stacker and so on.
| Model | DY150-1800-3 | DY150-1800-5 | DY100-1800-7 |
| Machine size | about 50m×11m×4.5m meters (base on the foundation drawing) | about 67m×11m×4.5m meters (base on the foundation drawing) | about 80m×11m×5m meters (base on the foundation drawing) |
| Design speed | 150m/min | ||
| Working speed | 120m/min | 120m/min | 120m/min(3ply) 100m/min(5ply) 80m/min (7ply) |
| Working width | 1800mm | 1800mm | 1800mm |
| Corrugated flute | (A, C, B, E (or selected by the customer) Note: The contract shall be subject to the confirmation of the customer) | (A, C, B, E (or selected by the customer) Note: The contract shall be subject to the confirmation of the customer) | (A, C, B, E (or selected by the customer) Note: The contract shall be subject to the confirmation of the customer) |
| Steam pressure | Steam capacity 4000Kg/Hr Maximum steam pressure: 1.2mpa | Steam capacity 4000Kg/Hr Maximum steam pressure: 1.2mpa | Steam capacity 4000Kg/Hr Maximum steam pressure: 1.2mpa |
| Common pressure: 0.8-1.1mpa | Common pressure: 0.8-1.1mpa | Common pressure: 0.8-1.1mpa | |
| Total power | Approximately 150 kw | Approximately 150 kw | Approximately 350 kw Actual power consumption about 250kW (full speed) |
| Direction of operating | Customer decides(left or right side) | Customer decides(left or right side) | Customer decides(left or right side) |
| Power supply | 380V 50Hz three-phase four-wire system | 380V 50Hz three-phase four-wire system | 380V 50Hz three-phase four-wire system |
| Usage | Available A, B, C grade domestic base paper or imported base paper | Available A, B, C grade domestic base paper or imported base paper | Available A, B, C grade domestic base paper or imported base paper |
